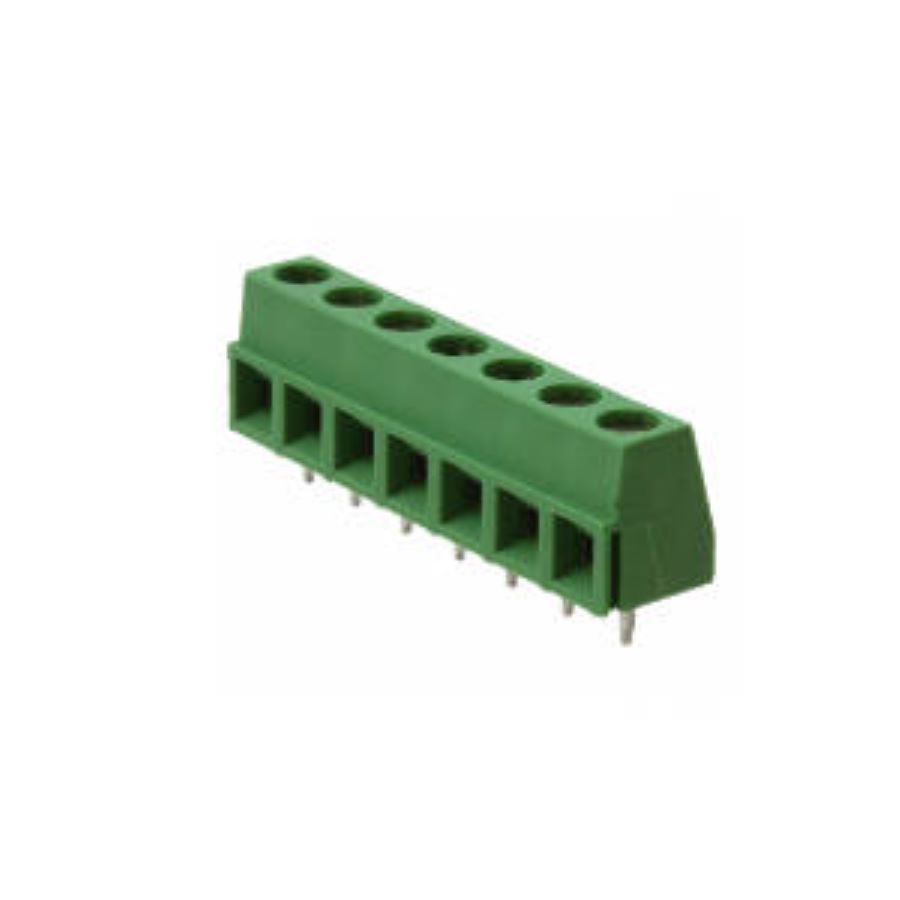

282836-7
Manufacturer:
TE Connectivity
Mfr.Part #:
282836-7
Datasheet:
Description:
Terminal Blocks Through Hole 7 5 mm 13.5 A 300 V 30 AWG to 16 AWG
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 35 mm |
| Width | 10 mm |
| Termination | Screw |
| Max Operating Temperature | 110 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Packaging | Box |
| Voltage Rating | 300 V |
| Depth | 8.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| Voltage | 300 V |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5 mm |
| Current | 13.5 A |
| Current Rating | 13.5 A |
| Max Current Rating | 13.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 7 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 7 |
| ELV | Compliant |
| Number of Poles | 7 |
| Connector Type | Receptacle |
| Wire/Cable Gauge | 30 AWG |
| Thread Size | M3 |
| Number of Positions | 7 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 7 |
| Number of Levels | 1 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 16 AWG |
| Housing Color | Green |
| Plating | Brass |
| Tail Length | 3.5 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 16 AWG |
Stock: 221
Distributors
pcbx
pcbxUnit Price$1.97147
Ext.Price$1.97147
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.97147 | $1.97147 |
| 10 | $1.58333 | $15.83330 |
| 25 | $1.47626 | $36.90650 |
| 50 | $1.37644 | $68.82200 |
| 100 | $1.25162 | $125.16200 |
| 300 | $1.17762 | $353.28600 |
| 500 | $1.10799 | $553.99500 |
| 1000 | $0.96350 | $963.50000 |
